Tensorpack M50kW/109kWh

  • 10000 Cycles

  • 20 Years

Contact Us

  • 图片1.png

SCROLL TO EXPLORE

Product Features

b1_img02.jpg b1_imgph01.jpg
  • Seamless Switching

    Implement seamless backup power function, switch to energy storage backup power within 20ms after grid power failure, achieving uninterrupted backup power. Integrated hybrid inverter, easy to achieve PV, diesel generator, grid, energy storage and multi-source coordinated control on site, forming a robust micro-grid. Saving 70% fuel costs.


  • Long Lifespan

    Integrated with the latest CATL 306Ah LFP battery cells, the cell cycle life exceeds 10,000 cycles. At standard ambient temperature, the EOL capacity is 70%.


  • Turnkey Solution

    The entire installation & testing process is completed in the factory, the on-site installation and commissioning time < 8 hours, simple installation, plug and play.


  • Safety

    Multi-level security protection, comprehensively guaranteeing safety from the cell to the system. Comprehensive fault alarm, electrical protection, and dual fire extinguishing measures of aerosol + water protect.

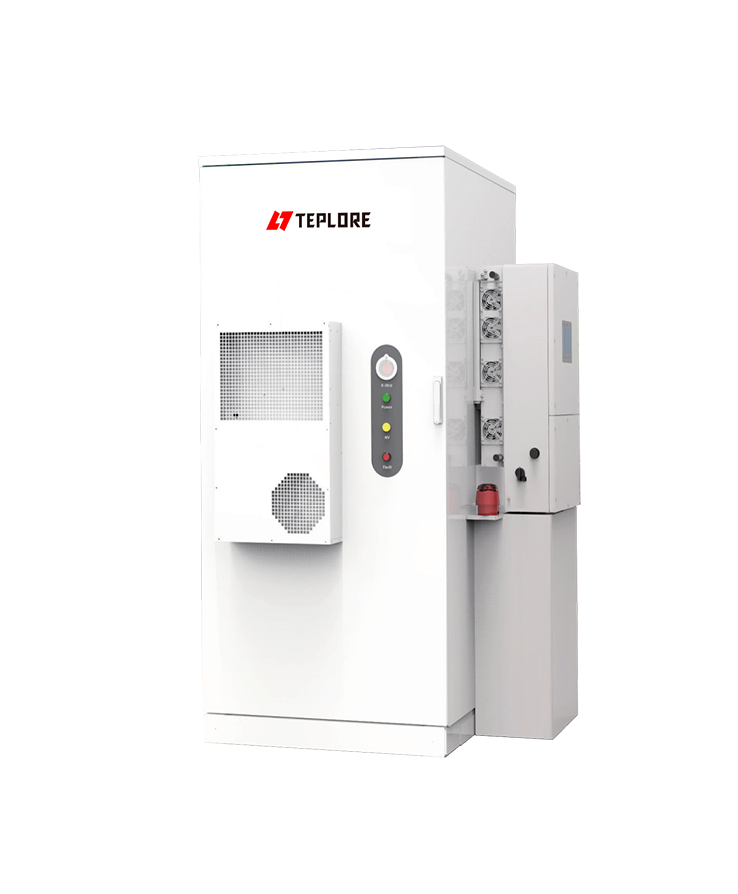

Tensorpack MEnergy Storage System

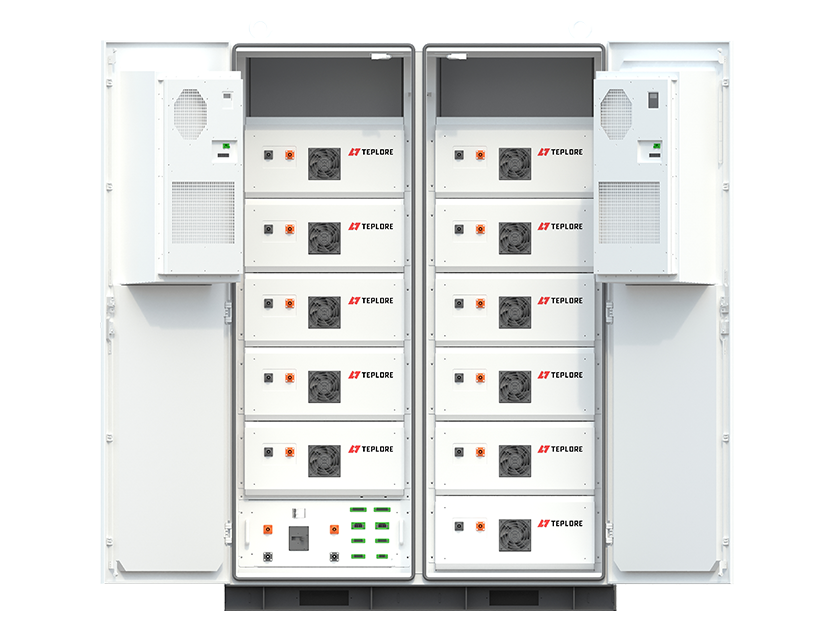

The Tensorpack M energy storage product integrates a 50kW Hybrid inverter and a 109kWh battery system, engineered specifically for micro-grid applications. The Hybrid inverter integrates a hybrid inverter which is capable for grid-forming, and enabling seamless interaction with distributed energy resources. The battery system features cutting-edge 306 LFP cells, a multi-layered BMS, high-voltage controls, and an adaptive environmental management system, ensuring reliability across diverse operating conditions. Designed for high integration, safety, and efficiency, the Tensorpack M series offers plug-and-play deployment and modular scalability, allowing flexible power and energy configurations to match micro-grid demands.

It excels in core applications such as renewable energy integration (e.g., solar/wind hybridization), off-grid operation, peak shaving, island mode resilience, and dynamic load balancing, empowering energy independence and stability for remote, commercial, or industrial micro-grid ecosystems.


  • b1_icon03.svg
    10000

    Cycles

  • b1_icon04.svg
    20
    y

    Lifespan

  • b1_icon05.svg
    1.1
    ㎡

    Footprint

Certification
  • laiyin.png
  • thumb_b1img04.jpg

IEC62619,IEC 63056, IEC 62477,IEC 60730, IEC 61000, UN38.3, UN3480

Grid Compliance
  • thumb_b1img09.jpg

    EU

  • 65c0d6bb93eae.jpg

    China

  • thumb_b1img10.jpg

    UK


Specification

AC Parameters
Rated Power 50 kW
Wiring Configuration 3P4W
Rated Grid Voltage 400 V
Operating temperature -25~55℃
Max. Continuous AC Current 72.17A
Rated Grid Frequency 50Hz/60Hz
Critical Load 3P4W
DC Parameters
Cell Type LFP 306Ah CATL
Rated Energy 109 kWh
Voltage Range 313.6~403.2 V
Cycles expected @ 100% DoD | 70% EoL | 25°C +/-5°C 10000 Times
System Parameters
Operating Temperature -25 ~ 55 ℃
Relative Humidity 0 to 95% RH, non - condensing
Altitude ≤2000 m
Communication Interface 4G Router (optional)
Communication Protocol Modbus TCP
Anti-corrosion C4,C5(optional)
IP Level Equipment cabinet: IP54
Cooling Method Air-cooling
Fire suppression Aerosol
Certification IEC62619,IEC 63056, IEC 62477,IEC 60730, IEC 61000, UN38.3, UN3480
Dimension (W*D*H) 1270x1340x2094 mm
Weight About 1.8T
