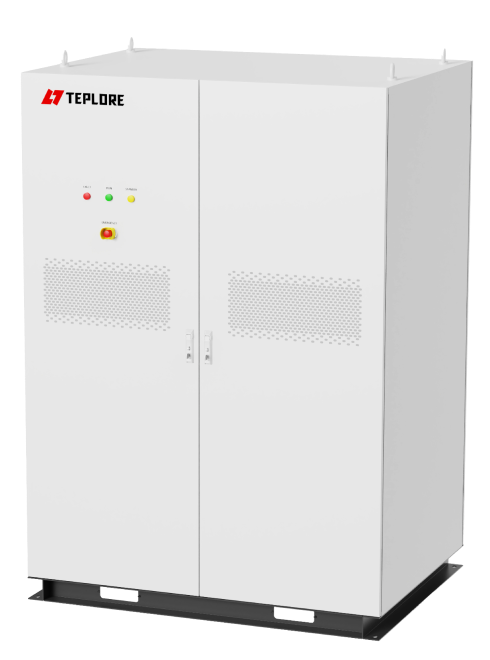

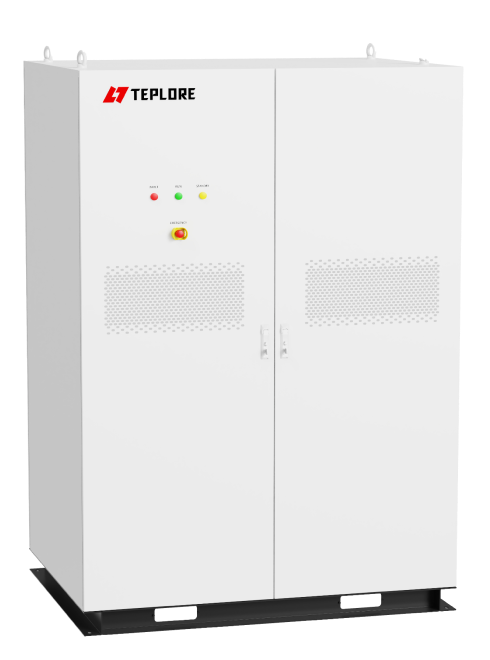

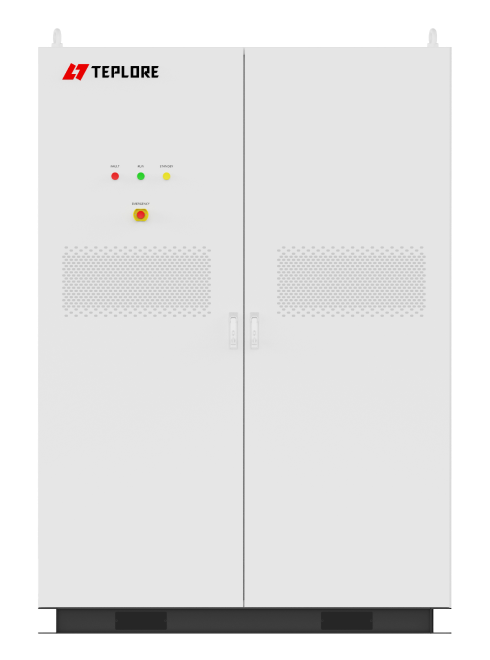

Tensorpack A 250kW/279kWh

  • 90% Efficiency

  • 8000 Cycles

  • 15 Years

Contact Us

Download
  • b1_img14.png
  • b1_img15.png
  • b1_img16.png

SCROLL TO EXPLORE

Product Features

b1_img02.jpg b1_imgph01.jpg
  • UL Standards

    Design and production are based on UL and NFPA 855 standards and comply with North American mandatory certification requirements. High standards, high safety and high reliability ensure the stable operation of the energy storage system throughout its life cycle.

  • EV Charging

    Designed for charging electric vehicles, it can support up to 240kW fast charging piles without upgrade the transformer. Multiple units connected in parallel can support even large charging power, significantly reducing investment costs.

  • High Performance

    All batteries are connected in series to avoid circulating current and ensure PCS operates at the highest efficiency range, thermal management system automatically adjusts the cooling strategy to maintain the best operating conditions of batteries.

  • Flexible Deployment

    Plug and play on site, the system is highly integrated and suitable for small spaces on site, significantly reducing construction and operation and maintenance costs.

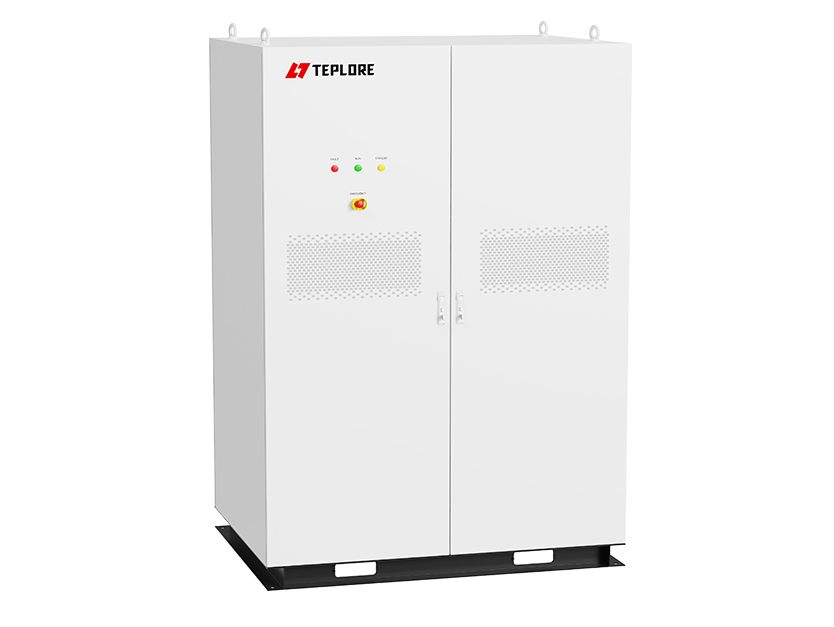

Tensorpack AEnergy Storage System

Targeted for the North American market, Tensorpack A comes with standard output ports that allow direct connection to customer loads. Through slow charging and fast discharging, it facilitates flexible expansion of transformers and effectively reduces demand charges.

  • b1_icon02.svg
    90
    %

    Efficiency

  • b1_icon03.svg
    8000

    Cycles

  • b1_icon04.svg
    15
    y

    Lifespan

  • b1_icon05.svg
    3
    ㎡

    Footprint

Certification
  • ul.jpg
  • ul1.jpg

UL1973、UL9540A、UL9540

Grid Compliance
  • Canada.jpg

    Canada

  • 美国.png

    USA


Specification

Download
AC Parameters
Rated Power 250 kW
Wiring Configuration 3P3W
Rated Grid Voltage 480 V
Grid Voltage Range 422.4 - 528 V
Max. Continuous AC Current 302 A
Rated Grid Frequency 60 Hz
Power Factor -1~1
DC Parameters
Cell Type LFP 280Ah CATL
Rated Energy 279 kWh
Voltage Range 873 ~ 1123 V
Cycles expected @ 100% DoD | 70% EoL | 25°C +/-5°C 8000 Times
System Parameters
Maximum Efficiency 90 %
Operating Temperature -30~50 ℃
Relative Humidity 0 to 95% RH, non - condensing
Altitude ≤2000 m
Communication Interface LAN / RS485 / CAN
Communication Protocol Ethernet / Modbus TCP / RS-485 / Modbus RTU
IP Level Type 3R
Cooling Method Liquid Cool
Noise Rating ≤72dB
Battery Rack Dimension (W*D*H) 1300x1300x2280 mm
Control Cabinet Dimension (W*D*H) 1600x1200x2280 mm
Battery Rack Weight 3040 kg
